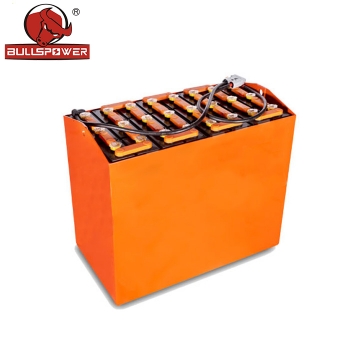

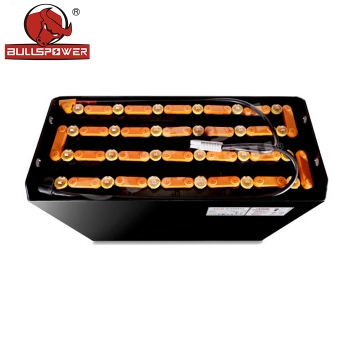

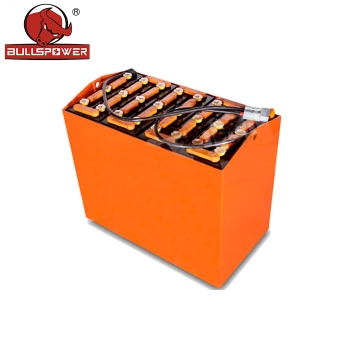

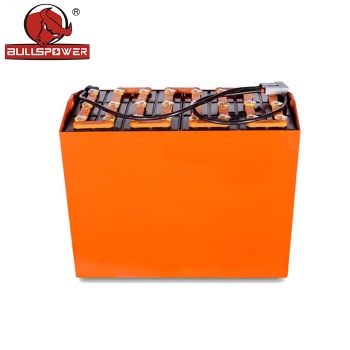

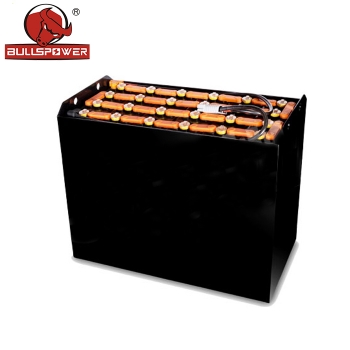

48 volt Flooded Lead Acid forklift battery


    Wisdom Power traction lead-acid batteries as a DC power widely supplied in forklifts, tractors and other equipment. Widely used in airports,stations, ports, vegetables and fruit market, factory warehouses and so on. At the same time, it widely used in bus
Product List/Catalog Download

Benefits of DIN BS Bolt-on Battery Cells

1. Long design life, more than 1500 cycles at 80% DOD

2. Tested tubular plate technology for maximum performance levels and reliability

3. Excellent low temperature performance

4. Reliable sealing structure

5. Less susceptible to moisture-related corrosion

6. Automatic watering system and gas mixing system (optional)

7. Higher energy density as compared to a standard traditional flat plate battery

8. Reliable, high performance long life cells

9. Robust and durable construction

10. Special design to prevent the short circuit of battery

11. Excellent cycle performance and recovery ability after deep discharge

Technical

1. Advanced tubular positive plate technology

2. Manufactured in accordance with international standards DIN / N60254-2 and IEC60254-2

3. Capacity ranging from 50 to 140Ah

4. Available in various voltages: 6V, 12V, 24V, 36V, 48V, 72V, 80V, 96V

5. High capacity tubular constructed design for high cycle applications

6. Optimized surface area to allow higher voltages in high rate and cold storage applications

7. Longer run times between charging intervals

8. Uniform distribution of active material and weight is achieved through a wet filling process which enhances plate uniformity

Special Features

Bolt On Connector

• Raised rubber bushing keeps connector from direct contact with electrolyte, reducing corrosion

• Fully insulated bolt-on connector reduces voltage leakage to ground which affects higher voltage systems

• Bolt-on connection forms water-tight seal











Wisdom Power traction lead-acid batteries as a DC power widely supplied in forklifts, tractors and other equipment. Widely used in airports,stations, ports, vegetables and fruit market, factory warehouses and so on. At the same time, it widely used in buses, sports and entertainment as a clean and pollution-free DC power supply . Battery size in line with Chinese GB standards, the British BS standards, the Germanic DIN standard, also respectively passed DIN / N60254-2 and IEC60254-2 standards.

Product Characteristic

Discharge Characteristic Electrolyte Density VS Voltage

traction lead-acid batteries

traction lead-acid batteries

Electrolyte Density And Capacity Temperature And Capacity

traction lead-acid batteries

traction lead-acid batteries

Discharge Characteristic The Cycle Life And DOD

traction lead-acid batteries

traction lead-acid batteries

Battery Model

Nominal Capacity(Ah)-5hr

Length

External Dimension

Weight

Width

Height

Total Height

With Acid

(AH)

MM

MM

MM

MM

Kgs

(50Ah/Plate)

2PZB100

100

45

158

385

420

5.5

3PZB150

150

61

8.3

4PZB200

200

77

11.0

5PZB300

300

109

13.8

6PZB350

350

125

16.5

7PZB400

400

141

19.3

8PZB450

450

157

22.0

9PZB500

500

173

27.5

(60Ah/Plate)

2PZB120

120

45

158

430

465

6.7

3PZB180

180

61

11.6

4PZB240

240

77

13.2

5PZB300

300

93

16.5

6PZB360

360

109

19.8

7PZB420

420

125

23.0

8PZB480

480

141

26.4

9PZB540

540

157

29.7

10PZB600

600

173

33.0

(80Ah/Plate)

2PZB160

160

45

158

560

595

9.5

3PZB240

240

61

14.0

4PZB320

320

77

18.5

5PZB400

400

93

22.9

6PZB480

480

109

27.5

7PZB560

560

125

31.9

8PZB640

640

141

36.5

9PZB720

720

157

41.0

10PZB800

800

173

45.5

(100AH/Plate)

2PZB200

200

45

158

690

720

13.6

3PZB300

300

61

16.5

4PZB400

400

77

22.0

5PZB500

500

93

27.5

6PZB600

600

109

33.0

7PZB700

700

125

38.5

8PZB800

800

141

44.0

9PZB900

900

157

49.5

10PZB1000

1000

173

55.0

Due to the large number of models only part of the display can contact us for more information
