Traction/Forklift battery

< >

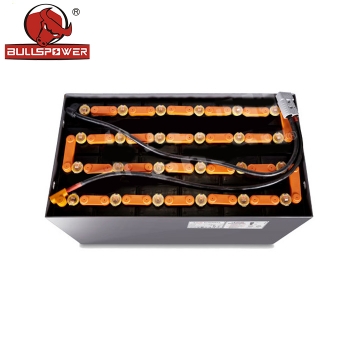

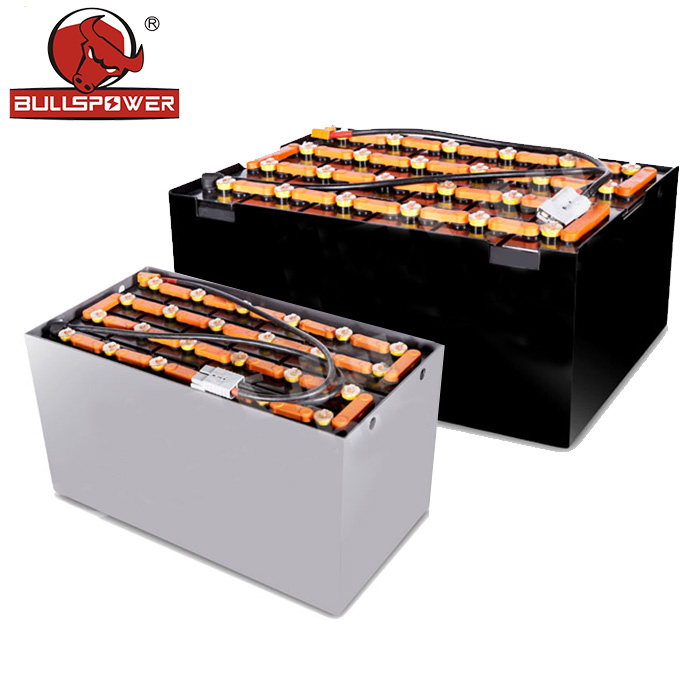

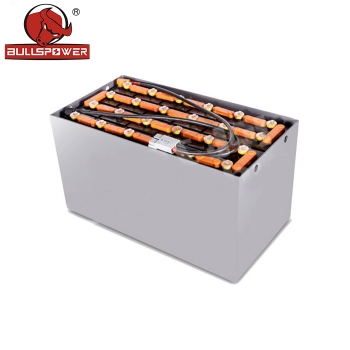

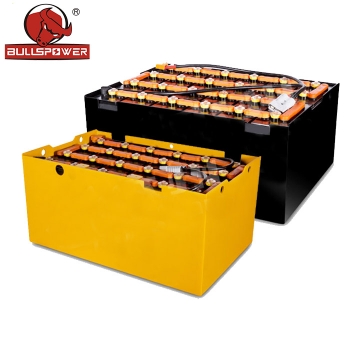

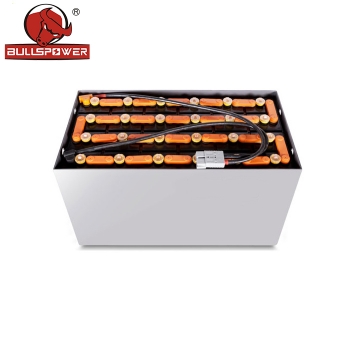

BS - DIN Traction Motive Power Forklift Battery

Based on the traditional euro traction battery design methods, Bulls Battery has excelled in becoming one of the only China. manufacturers of bolt-on DIN Standard, high performance forklift batteries. Designed and developed with precisi More Information

Description
Application
Charts
Specification
Download

Benefits of DIN BS Bolt-on Battery Cells

1. Long design life, more than 1500 cycles at 80% DOD

2. Tested tubular plate technology for maximum performance levels and reliability

3. Excellent low temperature performance

4. Reliable sealing structure

5. Less susceptible to moisture-related corrosion

6. Automatic watering system and gas mixing system (optional)

7. Higher energy density as compared to a standard traditional flat plate battery

8. Reliable, high performance long life cells

9. Robust and durable construction

10. Special design to prevent the short circuit of battery

11. Excellent cycle performance and recovery ability after deep discharge

Technical

1. Advanced tubular positive plate technology

2. Manufactured in accordance with international standards DIN / N60254-2 and IEC60254-2

3. Capacity ranging from 50 to 140Ah

4. Available in various voltages: 6V, 12V, 24V, 36V, 48V, 72V, 80V, 96V

5. High capacity tubular constructed design for high cycle applications

6. Optimized surface area to allow higher voltages in high rate and cold storage applications

7. Longer run times between charging intervals

8. Uniform distribution of active material and weight is achieved through a wet filling process which enhances plate uniformity

Special Features

Bolt On Connector

• Raised rubber bushing keeps connector from direct contact with electrolyte, reducing corrosion

• Fully insulated bolt-on connector reduces voltage leakage to ground which affects higher voltage systems

• Bolt-on connection forms water-tight seal

Wisdom Power traction lead-acid batteries as a DC power widely supplied in forklifts, tractors and other equipment. Widely used in airports,stations, ports, vegetables and fruit market, factory warehouses and so on. At the same time, it widely used in buses, sports and entertainment as a clean and pollution-free DC power supply . Battery size in line with Chinese GB standards, the British BS standards, the Germanic DIN standard, also respectively passed DIN / N60254-2 and IEC60254-2 standards.

Product Characteristic
Discharge Characteristic	Electrolyte Density VS Voltage

Electrolyte Density And Capacity	Temperature And Capacity

Discharge Characteristic	The Cycle Life And DOD

Battery Model	Nominal Capacity（Ah）-5hr	Length	External Dimension			Weight
	Nominal Capacity（Ah）-5hr	Length	Width	Height	Total Height	With Acid
	（AH）	MM	MM	MM	MM	Kgs
（50Ah/Plate）
2PZB100	100	45	158	385	420	5.5
3PZB150	150	61				8.3
4PZB200	200	77				11.0
5PZB300	300	109				13.8
6PZB350	350	125				16.5
7PZB400	400	141				19.3
8PZB450	450	157				22.0
9PZB500	500	173				27.5
（60Ah/Plate）
2PZB120	120	45	158	430	465	6.7
3PZB180	180	61				11.6
4PZB240	240	77				13.2
5PZB300	300	93				16.5
6PZB360	360	109				19.8
7PZB420	420	125				23.0
8PZB480	480	141				26.4
9PZB540	540	157				29.7
10PZB600	600	173				33.0
（80Ah/Plate）
2PZB160	160	45	158	560	595	9.5
3PZB240	240	61				14.0
4PZB320	320	77				18.5
5PZB400	400	93				22.9
6PZB480	480	109				27.5
7PZB560	560	125				31.9
8PZB640	640	141				36.5
9PZB720	720	157				41.0
10PZB800	800	173				45.5
（100AH/Plate）
2PZB200	200	45	158	690	720	13.6
3PZB300	300	61				16.5
4PZB400	400	77				22.0
5PZB500	500	93				27.5
6PZB600	600	109				33.0
7PZB700	700	125				38.5
8PZB800	800	141				44.0
9PZB900	900	157				49.5
10PZB1000	1000	173				55.0
Due to the large number of models only part of the display can contact us for more information
