| Specifications |
VRLA -BPH Series
HIGH RATE DISCHARGE VRLA BATTERY
Voltage covers: 12V
Capacity: From21-830W/Cell
Designed floating service life: 5-8 years @ 20 °C/68 °F for capacity less than 30Ah.10-12 years @ 20 °C/68 °F for capacity more than 30Ah.
| Features |
RANGE SUMMARY
The HR (High Rate) series is especially designed for high rate discharge applications. By using strong grids and specially designed active material, the HR series offers stable performance during high current discharge. It offers extremely high power output at 15 minutes backup time with 5~12 years design life. It is highly suited for high rate UPS/EPS systems and power switchgear applications.nbsp;
· 30% increased power output at 15 minutes backup time
· 5~12 years design life in floating condition
· Optimized plate achieve low internal resistance
· Wide operating temperature range from -20°C to 55°C
· Low self-discharge rate
· Excellent deep discharge recovery capability
| Parameters |

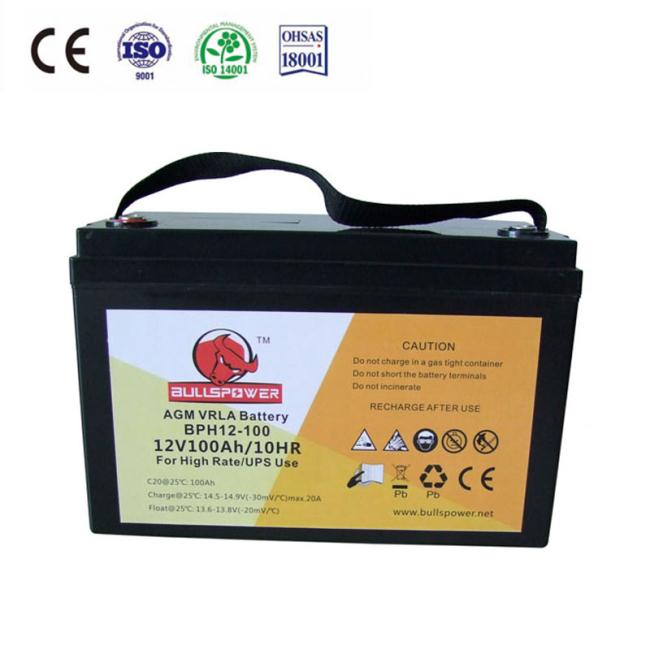

Model | BPH12V-100AH | External Dimension（mm±1mm) | Weight（Kg） | |||
| Voltage（V） | 12 | Length | Width | Height | Height(±2mm) | |
| Discharge time（hr） | 20 | 329 | 172 | 214 | 217 | 31 |
| Rated capacity（Ah） | 100 | |||||
| Applications |
· Alarm Systems
· Communication Equipments
· Control Equipments
· Security Systems
· Medical Equipments
· UPS systems
· Power Tools
· Toys
· Emergency Power Systems
| other models |
| BATTERY TYPE |
Nominal Voltage |
20Hr Capacity to 1.75Vpc |
External Dimension | Weight | Terminal | |||||||||
| Length | Width | Height | Total Height | Approx (± 3%) | Type | Layout | ||||||||
| (V) | (Ah) | mm | Inch | mm | Inch | mm | Inch | mm | Inch | kgs | Ibs | |||
| BPH12-30W | 12 | 5 | 90 | 3.54 | 70 | 2.76 | 102 | 4.02 | 107 | 4.21 | 1.68 | 3.70 | F1/F2 | C |
| BPH12-33W | 12 | 6 | 151 | 5.94 | 51 | 2.01 | 94 | 3.70 | 101 | 3.98 | 1.8 | 3.97 | F1/F2 | F |
| BPH12-35W | 12 | 7 | 151 | 5.94 | 65 | 2.56 | 95 | 3.74 | 100 | 3.94 | 2.2 | 4.85 | F1/F2 | F |
| BPH12-38W | 12 | 7.5 | 151 | 5.94 | 65 | 2.56 | 94 | 3.70 | 100 | 3.94 | 2.35 | 5.18 | F1/F2 | F |
| BPH12-42W | 12 | 8 | 151 | 5.94 | 65 | 2.56 | 95 | 3.74 | 100 | 3.94 | 2.46 | 5.42 | F1/F2 | F |
| BPH12-46W | 12 | 9 | 151 | 5.94 | 65 | 2.56 | 94 | 3.70 | 100 | 3.94 | 2.68 | 5.91 | F1/F2 | F |
| BPH12-50W | 12 | 10 | 151 | 5.94 | 98 | 3.86 | 95 | 3.74 | 101 | 3.98 | 3.3 | 7.28 | F1/F2 | F |
| BPH12-56W | 12 | 12 | 151 | 5.94 | 98 | 3.86 | 95 | 3.74 | 101 | 3.98 | 3.65 | 8.05 | F1/F2 | F |
| BPH12-70W | 12 | 14 | 151 | 5.94 | 98 | 3.86 | 95 | 3.74 | 101 | 3.98 | 4.15 | 9.15 | F1/F2 | F |
| BPH12-90W | 12 | 18 | 181 | 7.13 | 76 | 2.99 | 168 | 6.61 | 168 | 6.61 | 5.85 | 12.90 | L2/M5 | D |
| BPH12-120W | 12 | 24 | 166 | 6.54 | 175 | 6.89 | 125 | 4.92 | 125 | 4.92 | 8.1 | 17.86 | L3/M5 | D |
| BPH12-140W | 12 | 28 | 166 | 6.54 | 175 | 6.89 | 125 | 4.92 | 125 | 4.92 | 8.9 | 19.62 | L4/M5 | D |
| BPH12-178W | 12 | 35 | 195 | 7.68 | 130 | 5.12 | 155 | 6.10 | 180 | 7.09 | 11.2 | 24.69 | L5/M5 | C |
| BPH12-200W | 12 | 40 | 197 | 7.76 | 165 | 6.50 | 170 | 6.09 | 170 | 6.09 | 13 | 28.66 | L6/M5 | C |
| BPH-12-25W | 12 | 45 | 197 | 7.76 | 165 | 6.50 | 170 | 6.09 | 170 | 6.09 | 14.2 | 31.31 | L6/M5 | D |
| BPH12-280W | 12 | 55 | 228 | 8.98 | 138 | 5.43 | 208 | 8.19 | 227 | 8.94 | 18 | 39.68 | L7/M6 | C |
| BPH12-310W | 12 | 65 | 350 | 13.78 | 166 | 6.54 | 173 | 6.81 | 173 | 6.81 | 21 | 46.30 | L8/M6 | D |
| BPH12-320W | 12 | 80 | 259 | 10.20 | 169 | 6.65 | 208 | 8.19 | 212 | 8.35 | 23.2 | 51.15 | L9/M6 | C |
| BPH12-440W | 12 | 90 | 307 | 12.09 | 169 | 6.65 | 208 | 8.19 | 227 | 8.94 | 27.8 | 61.29 | L9/M6 | C |
| BPH12-470W | 12 | 100 | 329 | 12.95 | 172 | 6.77 | 214 | 8.43 | 217 | 8.54 | 31 | 68.34 | L10/M8 | C |
| BPH12-535W | 12 | 120 | 406 | 15.98 | 174 | 6.85 | 208 | 8.19 | 234 | 9.21 | 35.5 | 78.26 | L11/M8 | C |
| BPH12-620W | 12 | 134 | 340 | 13.39 | 170 | 6.81 | 283 | 11.14 | 288 | 11.34 | 41.5 | 91.49 | L10/M8 | C |
| BPH12-650W | 12 | 150 | 485 | 19.09 | 172 | 6.77 | 240 | 9.45 | 240 | 9.45 | 45 | 99.21 | L12/M8 | C |
| BPH12-790W | 12 | 180 | 522 | 20.55 | 240 | 9.45 | 219 | 8.62 | 244 | 9.61 | 56 | 123.46 | L13/M8 | E |
| BPH12-830W | 12 | 200 | 522 | 20.55 | 240 | 9.45 | 219 | 8.62 | 244 | 9.61 | 63 | 138.89 | L13/M8 | E |
* Products specifications described herein are subject to change without prior notification.
* If you wish to download the data sheet of this product, please send us a request by email via the Contact Us form.
| Structure |
CONSTRUCTION
· Positive plate Special designed grid with Pb-Ca-Sn alloy
· Negative plate – Balanced Pb-Ca grid for improved recombination efficiency
· Separator – Low internal resistance AGM separator
· Electrolyte – Dilute high purity sulphuric acid
· Battery container and cover – ABS
· Pillar seal – Double layers epoxy resin seal
· Relief valve – Complete with integrated flame arrestor
| Curve chart |
