UPS

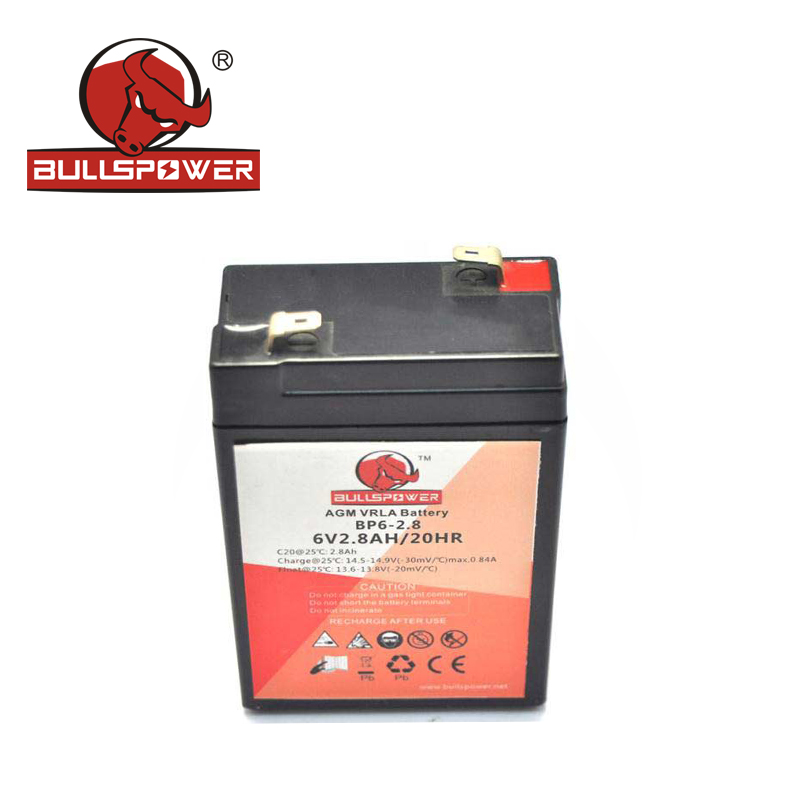

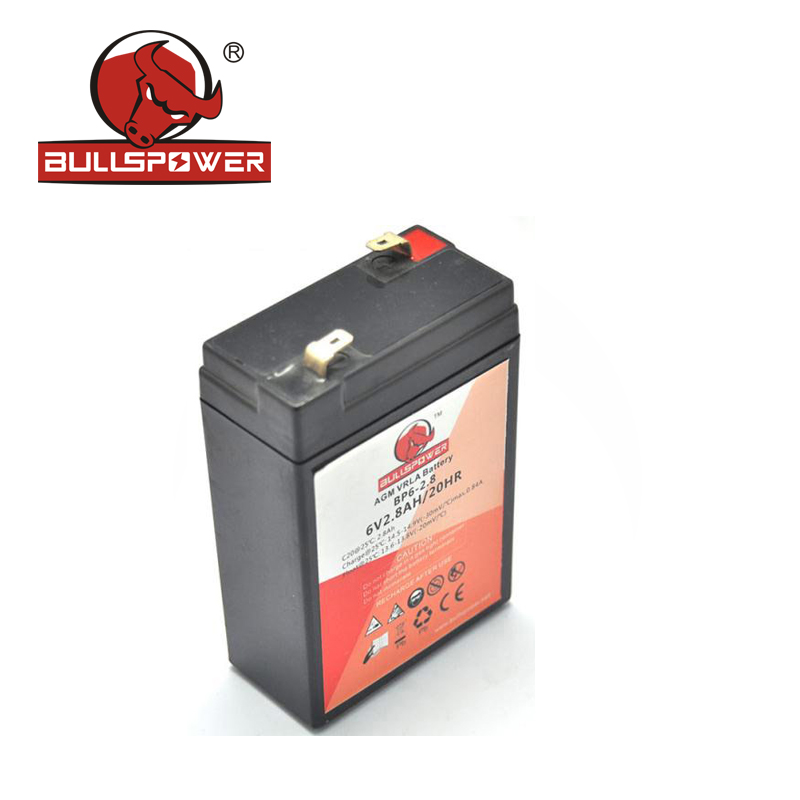

6V 2.8Ah VRLA UPS Battery
-
The BP MEDIUM series offers a 10 years full maintenance free design life. With a compact design and good reliability, this series is highly suited for security and alarm systems, UPS systems, emergency light systems and other small backup applications. Th
6V 2.8Ah VRLA UPS Battery
Features
● Designed with AGM (Absorbent Glass Mat) technology
● High performance plates and electrolyte to produce extra output power
● Wide operation temperature range from -15℃ to 50℃
● Can be used at vertical or horizontal orientation
● Balanced design for both floating and cyclic operation
● Low self-discharge rate and long shelf life
● Alarm Systems
● UPS & EPS
● Lighting equipment
● Fire alarms and security systems
● Communications and electric equipment
● Portable VTR/TV, tape recorders, radios, etc.
● Various power toys and recreational equipment
● Emergency power supplies in power generation plants and substations
|
|
|
|
|
|
| Battery Model | Rated voltage |
Capacity | Length | External Dimension | Weight | Terminal | |
| Width | Height | Approx（±3%） | |||||
| （V） | （AH） | MM | MM | MM | Kgs | ||
| BP6-1.2 | 6 | 1.2 | 98 | 25 | 53 | 0.25 | F1 |
| BP6-2.8 | 6 | 2.8 | 66 | 33 | 97 | 0.57 | F1 |
| BP6-3.3 | 6 | 3.3 | 134 | 34.5 | 60 | 0.64 | F1 |
| BP6-4 | 6 | 4 | 71 | 47 | 97 | 0.71 | F1/F2 |
| BP6-4.5 | 6 | 4.5 | 71 | 47 | 97 | 0.75 | F1/F2 |
| BP6-7 | 6 | 7 | 151 | 34 | 94 | 1.1 | F1/F2 |
| BP6-10 | 6 | 10 | 151 | 50 | 94 | 1.65 | F1/F2 |
| BP12-2.2 | 12 | 2.2 | 177 | 35 | 60 | 0.88 | F1/F2 |
| BP12-3 | 12 | 3 | 135 | 67 | 60 | 1.16 | F1/F2 |
| BP12-3.3 | 12 | 3.3 | 135 | 67 | 60 | 1.25 | F1/F2 |
| BP12-4 | 12 | 4 | 90 | 70 | 97 | 1.4 | F1/F2 |
| BP12-4.5 | 12 | 4.5 | 90 | 70 | 97 | 1.45 | F1/F2 |
| BP12-5 | 12 | 5 | 90 | 70 | 97 | 1.68 | F1/F2 |
| BP12-6.5 | 12 | 6.5 | 151 | 65 | 94 | 2.02 | F1/F2 |
| BP12-7 | 12 | 7 | 151 | 65 | 94 | 2.1 | F1/F2 |
| BP12-7.5 | 12 | 7.5 | 151 | 65 | 94 | 2.35 | F1/F2 |
| BP12-9 | 12 | 9 | 151 | 65 | 94 | 2.6 | F1/F2 |
| BP12-10 | 12 | 10 | 151 | 98 | 95 | 3.05 | F1/F2 |
| BP12-17 | 12 | 17 | 181.5 | 77 | 167 | 5.1 | L2/M5 |
| BP12-18 | 12 | 18 | 181.5 | 77 | 167 | 5.5 | L2/M5 |
| BP12-24 | 12 | 24 | 166 | 175 | 125 | 7.2 | L2/M5 |
| BP12-33 | 12 | 33 | 195 | 130 | 155 | 10.5 | L2/M6 |
| BP12-55 | 12 | 55 | 228 | 138 | 209 | 17.5 | L2/M6 |
| BP12-65 | 12 | 65 | 350 | 167 | 173 | 21 | L2/M6 |
| BP12-80 | 12 | 80 | 260 | 169 | 211 | 24.5 | M8 |
| BP12-100 | 12 | 100 | 330 | 171 | 219 | 29.5 | M8 |
| BP12-150 | 12 | 150 | 341 | 173 | 283 | 41 | M8 |
| BP12-200 | 12 | 200 | 522 | 240 | 219 | 58.5 | M8 |
| BP12-250 | 12 | 250 | 520 | 268 | 220 | 70.5 | M8 |
