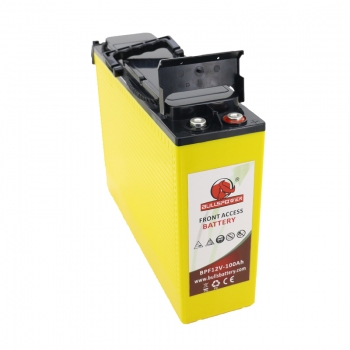

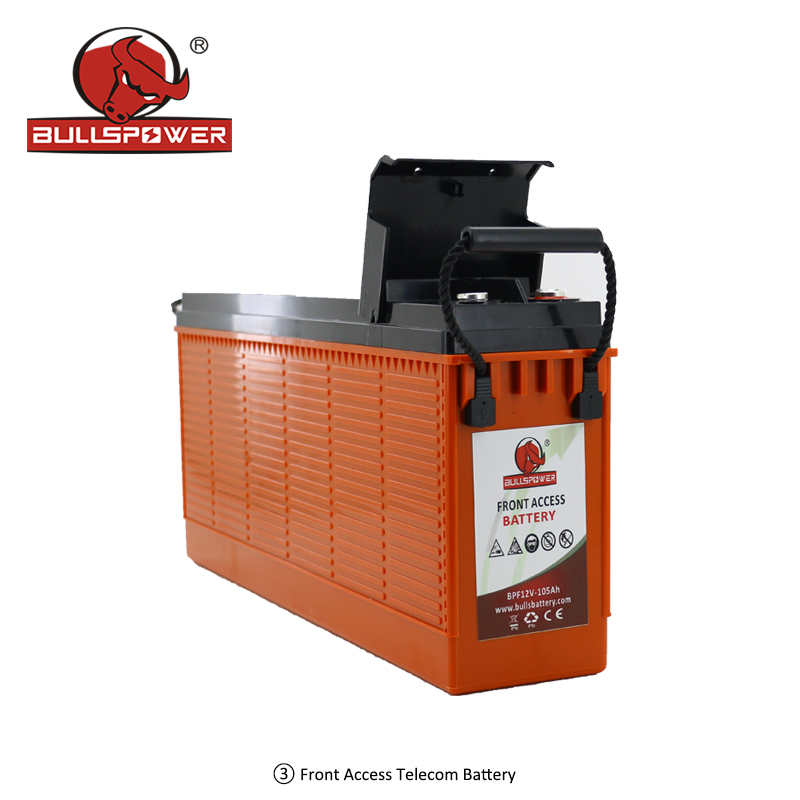

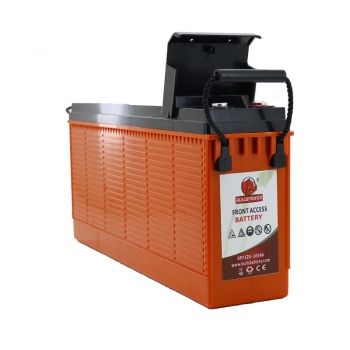

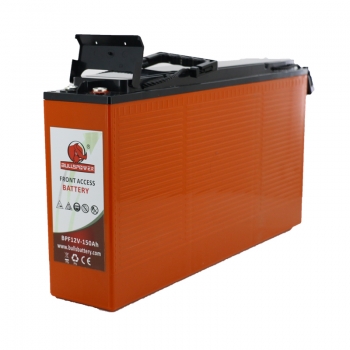

BPF Series Front-Terminal Batteries
-
BPF series batteries are specially designed with front conversion terminal, easier for installation and save floor space, long life float service design and high energy density, used in back-up power for communication and UPS system.
Features:
★ 12 years design life at floating condition
★ Wide operating temperature range from -15°C to 55°C
★ Thick pasted plates with high quality lead-tin-calcium alloy grids for long service life
★ Much more energy in comparison to the battery with the same rated capacity
★ Front access terminal with standard width for 19" and 23" ETSI racks
★ 30% decreased float current lead to excellent high temperature resistance
★ Designed floating service life: 12 years at 20℃/68°F
★ Warranty: 1-2 years
Applications:
● Communication equipment
● Big Uninterruptible power supplies
● Telecommunication systems
● Electronic cash registers
● Solar or wind power station
● Telecommunications
● Other Standby Systems
● Uninterruptible Power Supply (UPS)
● Medical Equipments
● Emergency Power Systems
|
|
|
|
|
|
| Battery Model | Rated voltage |
Capacity | Length | External Dimension | Weight | Terminal | ||
| Width | Height | Total Height | Approx（±3%） | |||||
| （V） | （AH） | MM | MM | MM | MM | Kgs | ||
| BPF12-55 | 12 | 55 | 277 | 106 | 223 | 223 | 16.0 | T2 |
| BPF12-80 | 12 | 80 | 562 | 114 | 188 | 188 | 25.0 | T3 |
| BPF12-100 | 12 | 100 | 507 | 110 | 223 | 223 | 30.0 | T5 |
| BPF12-110 | 12 | 110 | 394 | 110 | 286 | 286 | 31.0 | T5 |
| BPF12-125 | 12 | 125 | 552 | 110 | 239 | 239 | 37.5 | T5 |
| BPF12-150 | 12 | 150 | 551 | 110 | 288 | 288 | 44.0 | T5 |
| BPF12-160 | 12 | 160 | 551 | 110 | 288 | 288 | 45.0 | T5 |
| BPF12-175 | 12 | 175 | 546 | 125 | 316 | 323.5 | 53.8 | T5 |
| BPF12-180 | 12 | 180 | 560 | 125 | 316 | 316 | 54.2 | T5 |
| BPF12-190 | 12 | 190 | 560 | 125 | 316 | 316 | 55.5 | T5 |
