Storage Battery

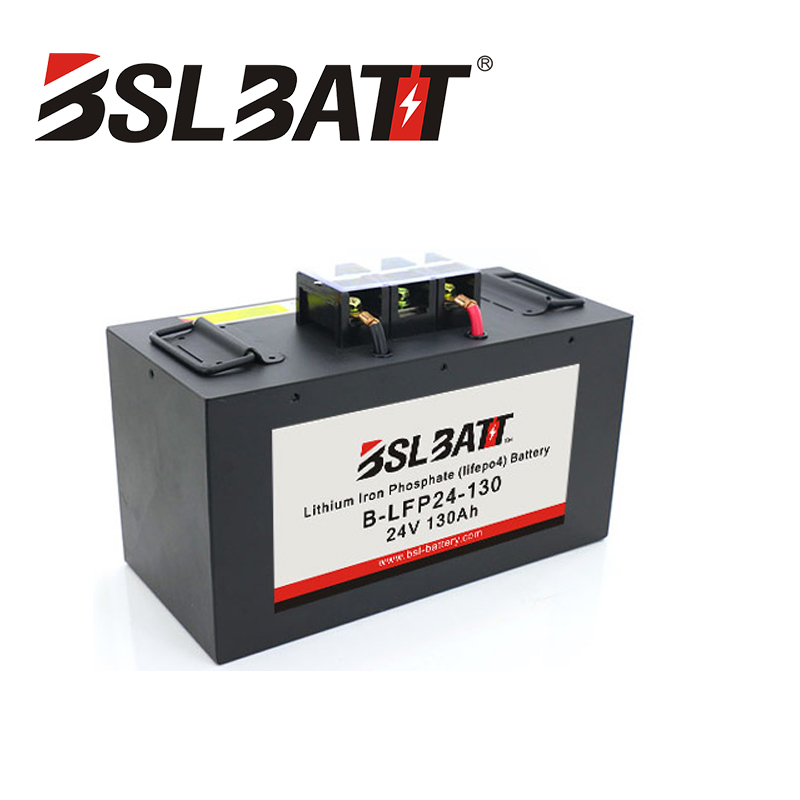

24V 130AH renewable energr lithium Battery
-
BSLBATT's energy storage batteries are not only easy to install and use, they also help you to save on electricity costs. High energy density and a wide temperature range enhance the user experience.
|
- Lift Trucks
- Solar
- UPS
- Telecom
- Industrial
- Remote Power
- Military
- RV
- Utility batteries
- Marine
- Mining
|
|
|
|
|
|
|
|
|
■ SPECIFICATIONS:
| Items | Parameter |
| Battery Type | LiFePO4 |
| Nominal Voltage | 24V |
| Nominal Capacity | 130Ah |
| Energy | 3120 WH |
| Dimensions (L x W x H) | 520*450*350MM |
| Weight | 40KG |
| Case Material | ABS/Iron case |
| Certifications | CE/ISO/UN38.3/MSDS |
| Efficiency | 99% |
| Self Discharge | <1% per Month |
| Series & Parallel Application | max. 4 series or 4 parallel connected application |
| Peak Discharge Current | 260 A |
| Continus Discharge Current | 130 A |
| Operation Temperature Range | -20~60℃ |
| Voltage at end of Discharge | 25.6 V |
| Working Voltage | 22.4-25.6V |
| Discharge Temperature | -4 to 140 ºF (-20 to 60 ºC) |
| Charge Temperature | 32 to 113 ºF (0 to 45 ºC) |
| Storage Temperature | 23 to 95 ºF (-5 to 35 ºC) |
| Cycle Life | > 2000 cycles |
| Self-Discharge Rate | Residual capacity: ≤3%/month; ≤15%/years |
| Reversible capacity: ≤1.5%/month; ≤8%/years | |
| Storage Temperature & Humidity Range | Less than 1 month: -20℃~35℃, 45%RH~75%RH |
| Less than 3 months: -10℃~35℃, 45%RH~75%RH | |
| Recommended storage environment: 15℃~35℃，45%RH~75%RH |
■ Product List
| Models | Voltage（V） | Nominal Capacity（AH） | Max.charge current（A） | Weight（kg）+/-5% | Dimension（+/-3mm） | Cycle life DOD 100% | ||
| L（mm） | W（mm） | H（mm） | ||||||
| B-LFP12-40 | 12 | 40 | 20 | 6 | 195 | 130 | 168 | ＞2000 |
| B-LFP12-50 | 12 | 50 | 30 | 7 | 229 | 138 | 213 | ＞2000 |
| B-LFP12-80 | 12 | 80 | 30 | 12.8 | 262 | 167 | 212 | ＞2000 |
| B-LFP12-100 | 12 | 100 | 50 | 14 | 323 | 173 | 218 | ＞2000 |
| B-LFP12-120 | 12 | 120 | 60 | 16 | 323 | 173 | 218 | ＞2000 |
| B-LFP12-150 | 12 | 150 | 75 | 24 | 485 | 172 | 240 | ＞2000 |
| B-LFP12-170 | 12 | 170 | 85 | 26 | 485 | 172 | 240 | ＞2000 |
| B-LFP12-200 | 12 | 200 | 100 | 30 | 520 | 269 | 205 | ＞2000 |
| B-LFP12-240 | 12 | 240 | 120 | 34.2 | 520 | 269 | 208 | ＞2000 |
| B-LFP24-50 | 24 | 50 | 25 | 14.8 | 520 | 380 | 290 | ＞2000 |
| B-LFP24-100 | 24 | 100 | 50 | 28 | 520 | 450 | 350 | ＞2000 |
| B-LFP24-150 | 24 | 150 | 50 | 42 | 520 | 450 | 400 | ＞2000 |
| B-LFP24-200 | 24 | 200 | 50 | 56 | 520 | 380 | 290 | ＞2000 |
| B-LFP24-250 | 24 | 250 | 50 | 70 | 600 | 450 | 350 | ＞2000 |
| Because the model is numerous, only displays the part, may contact us to understand more! | ||||||||
■ Battery Management System:
The lithium batteries are supplied with Battery Management System that can monitor and optimize each single cell during charge and discharge, to protect the battery pack from damage agains over-charge, over-discharge, short circuit. The BMS helps to ensure safe and accurate running.
| Items | Content | Specification |
| Over Charge | Over-charge protection for each cell | 3.8±0.03V |
| Over-charge release for each cell | 3.60±0.05V | |
| Over-charge release method | Under the release voltage | |
| Over Discharge | Over-discharge protection for each cell | 2.3±0.05V |
| Over-discharge release for each cell | 2.8±0.05V | |
| Over-discharge release method | Charge to recovery | |
| Over Current | Over discharge current protection | 300A~500A |
| Protection delay time | 50ms～200ms | |
| Over current release method | Delay about 8S after recovery | |
| Short Circuit | Do not short-circuit the electrodes | Designed for 600A/500us |
| Battery Temperature | Charge over temperature | Protection @ 65±5℃ |
| Release @ 50±5℃ | ||
| Discharge over temperature | Protection @ 65±5℃ | |
| Release @ 50±5℃ | ||
| MOSFET over temperature | Protection @ 103±10℃ | |
| Release @ 75±10℃ |
