Energy Storage

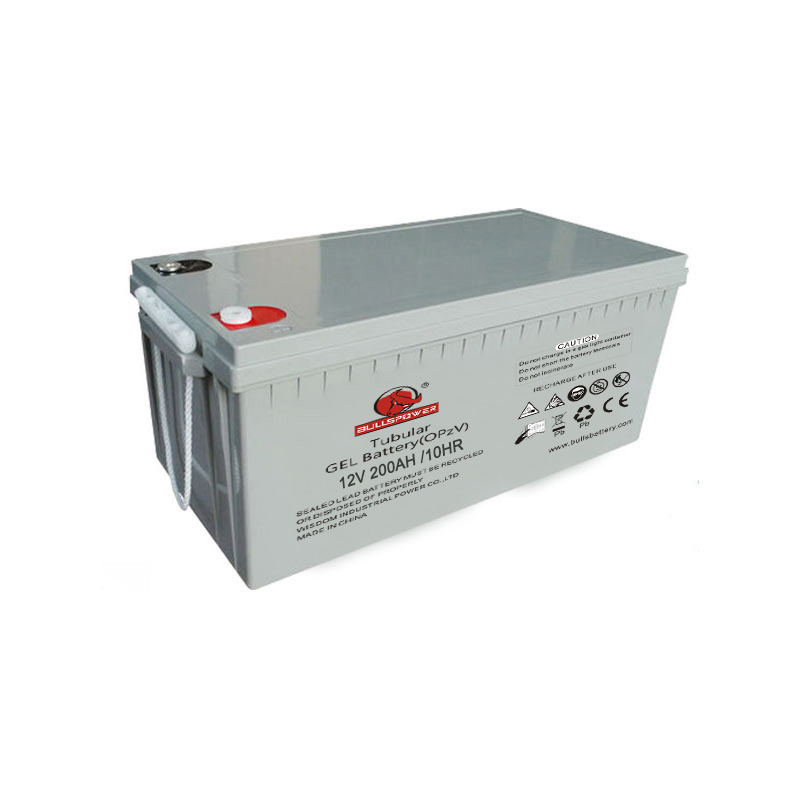

12v 200Ah OPzV Tubular Plate gel battery for 24v 48v home Solar Wind System
-
BULLSPOWER OPzV Gel Range are maintenance free sealed valve regulated lead acid rechargeable batteries offer their superior perfomance and reliability.
Characteristics
1. Plate: Positive plate adopt tubular plate which can prevent active material falling,and adopts muti-component alloy frame. Have fine corrossion-resisting performance and long cycle life.
Negative plate adopts special radiated structure.
2. Separator: Adopt PVC-SiO2 separator with big porosity and low resistance.
3. Electrolyte: Adopt Germany gas sillicon dioxide electrolyte in gel state in the battery without flowing leakage and lamination can be avoided.
4. Satety valve: Adopt Germany technology,constant opening and closing,accumulator expansion,damage and electrolyte dry up can be avoided.
5.Standard: Proof against deep discharge according to DIN 43539 T5.
6. Design life: 20 years at 20ºCambient, 3-5 Years warranty at 20℃/68°F .
7. High Power Cycles: at least 1500 cycles under 100% D.O.D at 20℃/68°F
| Model | Rated | Rated | Dimensions(mm/in) | Weight | Terminal Type | Internal resistance (Fully charged, 25℃) | |||
| Voltage | Capacity | Length | Width | Height | Total Height | ±5%(Kg) | |||
| (V) | (AH) | mm | mm | mm | mm | Kg | |||
| BPZV2200 | 2 | 200 | 103 | 206 | 354 | 390 | 16.5 | T10 | 1.1 |
| BPZV2250 | 2 | 250 | 124 | 206 | 354 | 390 | 21.5 | T10 | 1 |
| BPZV2300 | 2 | 300 | 145 | 206 | 354 | 390 | 23.5 | T10 | 0.9 |
| BPZV2350 | 2 | 350 | 124 | 206 | 470 | 506 | 26.5 | T10 | 0.8 |
| BPZV2420 | 2 | 420 | 145 | 206 | 470 | 506 | 30.8 | T10 | 0.7 |
| BPZV2500 | 2 | 500 | 166 | 206 | 470 | 506 | 35 | T10 | 0.6 |
| BPZV2600 | 2 | 600 | 145 | 206 | 645 | 681 | 41.5 | T10 | 0.6 |
| BPZV2770 | 2 | 770 | 253 | 210 | 470 | 506 | 56.5 | T10 | 0.5 |
| BPZV2800 | 2 | 800 | 191 | 210 | 645 | 681 | 58.5 | T10 | 0.5 |
| BPZV21000 | 2 | 1000 | 233 | 210 | 645 | 681 | 68.6 | T10 | 0.4 |
| BPZV21200 | 2 | 1200 | 275 | 210 | 645 | 681 | 82 | T10 | 0.35 |
| BPZV21500 | 2 | 1500 | 275 | 210 | 795 | 831 | 103.5 | T10 | 0.25 |
| BPZV22000 | 2 | 2000 | 399 | 210 | 772 | 807 | 143 | T10 | 0.23 |
| BPZV22500 | 2 | 2500 | 487 | 212 | 772 | 807 | 174 | T10 | 0.2 |
| BPZV23000 | 2 | 3000 | 576 | 212 | 772 | 807 | 209 | T10 | 0.15 |
