Energy Storage

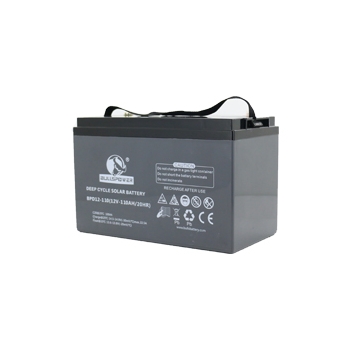

Deep Cycle AGM Battery 12 Volt 100Ah for RV, Solar Marine, And Off-grid
-
Delivering power when you need it, the BULLSPOWER BPD12-100 12 Volt 100 AH uses a state of the art, heavy-duty, calcium-alloy grid that provides exceptional performance and service life in both float and cyclic applications.
The BPD12-100 is an Absorbent
BULLSPOWER’s 12V 100AH Deep Cycle Hybrid GEL Battery is an excellent choice for standby or daily power needs – even in the most severe conditions. Built tough with a leak-proof maintenance-free design, this battery provides both performance and long battery life. BULLSPOWER’s 12V Deep Cycle Hybrid GEL Battery is perfect for critical systems due to its ability to withstand repeated charge-discharge cycles. Stay protected against sudden loss to mains power and ensure your vehicle or off-grid systems stay powered with BULLSPOWER’s GEL batteries.
Dimensions: 12.17 inches x 6.61 inches x 8.30 inches.
Factory activated SLA / AGM battery. Maintenance-free. No adding water. Advanced design works right out of the box and requires zero maintenance, zero adding of fluids compared to a flooded wet cell battery
Rechargeable spill proof battery has a characteristic of high discharge rate, wide operating temperatures, long service life, and deep discharge recovery. Mounted in any position, resists shocks, and vibration. High performance in high and low temperatures.
Backed by a 30-day refund policy and full 1-year warranty.
Note: We recommend only using consistent battery types. DO NOT mix Hybrid GEL and Pure GEL batteries together as it will reduce overall performance and may cause damage to the battery bank.
KEY FEATURES
Maintenance Free
Manufactured with gel suspended electrolyte and advanced valve regulated technology, BULLSPOWER Deep Cycle Hybrid GEL Batteries save you from acid leakage and frequent maintenance
Extended Service Life

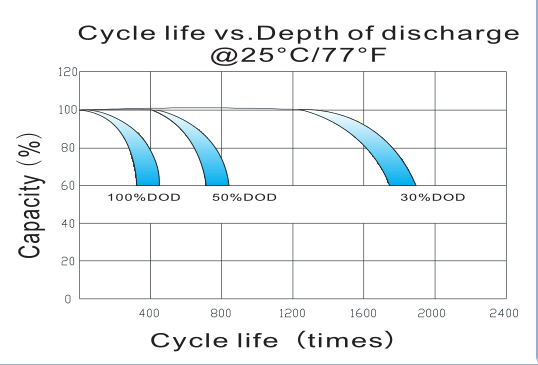

Corrosion-resistant grids enable a design life of up to 12 years in standby applications and more than 750 charges/discharge cycles at 50% DOD in cyclic applications
Long Shelf Life
Made of high purity materials, BULLSPOWER Deep Cycle Hybrid GEL Batteries reduce the monthly self-discharge rate below 3% at 77℉(25℃), which is 5 times lower than their flooded counterparts
Deep Discharge Recovery
Proprietary plate composition and patented gel electrolyte ensures excellent recovery capability after excessive deep discharge
Applications
● E-vehicles, such as electric wheel-chairs.
● Golf trolleys and carts
● UPS which needs much better cycle life
● Railway power system
● Marine Power system for Starting and Cycle
● Solar Systems & Wind Systems
● Sweeper/Scrubbers/Floor Machines
● Renewable Energy Systems
|
|
|
|
|
|
|
Battery Model |
Rated |
20Hr Capacity |
Length |
External Dimension |
Weight |
Terminal |
||
|
Width |
Height |
Total Height |
Approx |
|||||
|
（V） |
（AH） |
MM |
MM |
MM |
MM |
Kgs |
||
|
BPD6-200 |
6 |
200/20HR |
306 |
168 |
220 |
222 |
30.5 |
T5 |
|
BPD6-210 |
6 |
210/20HR |
260 |
180 |
247 |
249 |
30 |
T5 |
|
BPD6-220 |
6 |
220/20HR |
306 |
168 |
220 |
222 |
32.0 |
T5 |
|
BPD6-225 |
6 |
225/20HR |
243 |
187 |
275 |
275 |
31.5 |
T6 |
|
BPD6-310 |
6 |
310/20HR |
295 |
178 |
346 |
366 |
46.0 |
T7 |
|
BPD6-330 |
6 |
330/20HR |
295 |
178 |
354 |
360 |
46.6 |
T6 |
|
BPD6-380 |
6 |
380/20HR |
295 |
178 |
404 |
410 |
55.5 |
T5/T6 |
|
BPD6-420 |
6 |
420/20HR |
295 |
178 |
404 |
410 |
56.8 |
T5/T6 |
|
Battery Model |
Rated |
20Hr Capacity |
Length |
External Dimension |
Weight |
Terminal |
||
|
Width |
Height |
Total Height |
Approx |
|||||
|
（V） |
（AH） |
MM |
MM |
MM |
MM |
Kgs |
||
|
BPD12-24 |
12 |
25/20HR |
166 |
175 |
126 |
126 |
8.3 |
T1 |
|
BPD12-26 |
12 |
25/20HR |
165 |
180 |
174 |
179 |
8.4 |
T1 |
|
BPD12-35 |
12 |
35/20HR |
196 |
126 |
155 |
167 |
10.5 |
T3 |
|
BPD12-40 |
12 |
40/20HR |
198 |
130 |
174 |
174 |
14.5 |
T2 |
|
BPD12-55 |
12 |
55/20HR |
229 |
166 |
208 |
212 |
16.0 |
T3 |
|
BPD12-70 |
12 |
70/20HR |
350 |
138 |
178 |
178 |
23.5 |
T3 |
|
BPD12-75 |
12 |
75/20HR |
260 |
167 |
208 |
227 |
25.0 |
T3 |
|
BPD12-85 |
12 |
85/20HR |
260 |
169 |
208 |
227 |
26.1 |
T3 |
|
BPD12-90 |
12 |
90/20HR |
307 |
169 |
211 |
216 |
28.5 |
T3 |
|
BPD12-100 |
12 |
100/20HR |
307 |
169 |
211 |
216 |
30.5 |
T4 |
|
BPD12-110 |
12 |
110/20HR |
331 |
174 |
214 |
220 |
33.5 |
T5 |
|
BPD12-120 |
12 |
120/20HR |
407 |
173 |
210 |
233 |
39.5 |
T5 |
|
BPD12-135 |
12 |
135/20HR |
344 |
172 |
280 |
285 |
41.5 |
T4 |
|
BPD12-150 |
12 |
150/20HR |
484 |
171 |
241 |
241 |
46.0 |
T4 |
|
BPD12-180 |
12 |
180/20HR |
532 |
206 |
216 |
222 |
56.0 |
T5 |
|
BPD12-200 |
12 |
200/20HR |
532 |
206 |
216 |
222 |
58.8 |
T5 |
|
BPD12-220 |
12 |
220/20HR |
522 |
240 |
219 |
225 |
64.0 |
T5 |
|
BPD12-240 |
12 |
240/20HR |
520 |
268 |
220 |
226 |
71.0 |
T5 |
