Start Battery

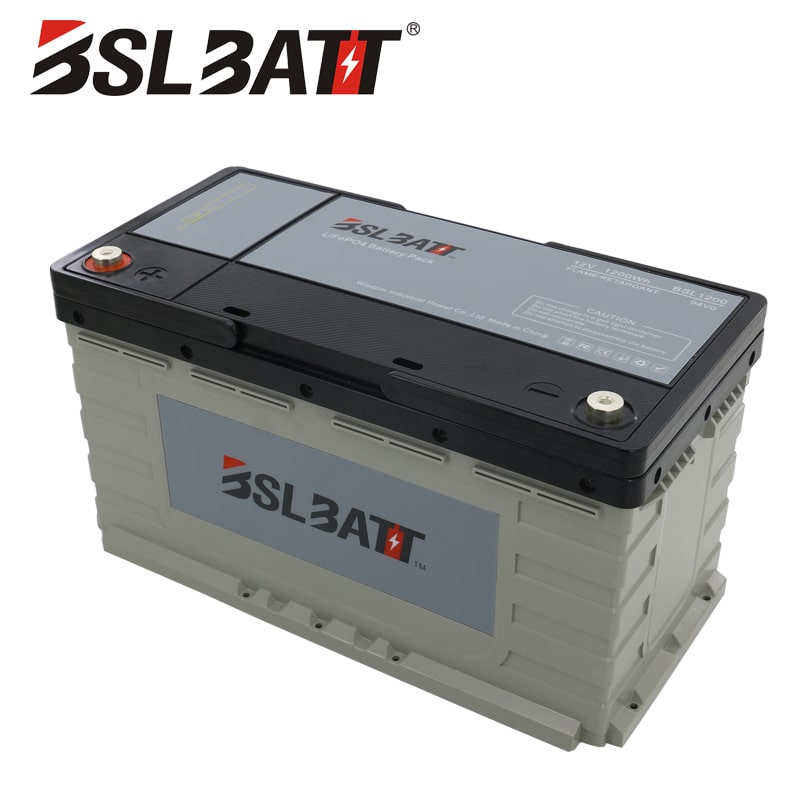

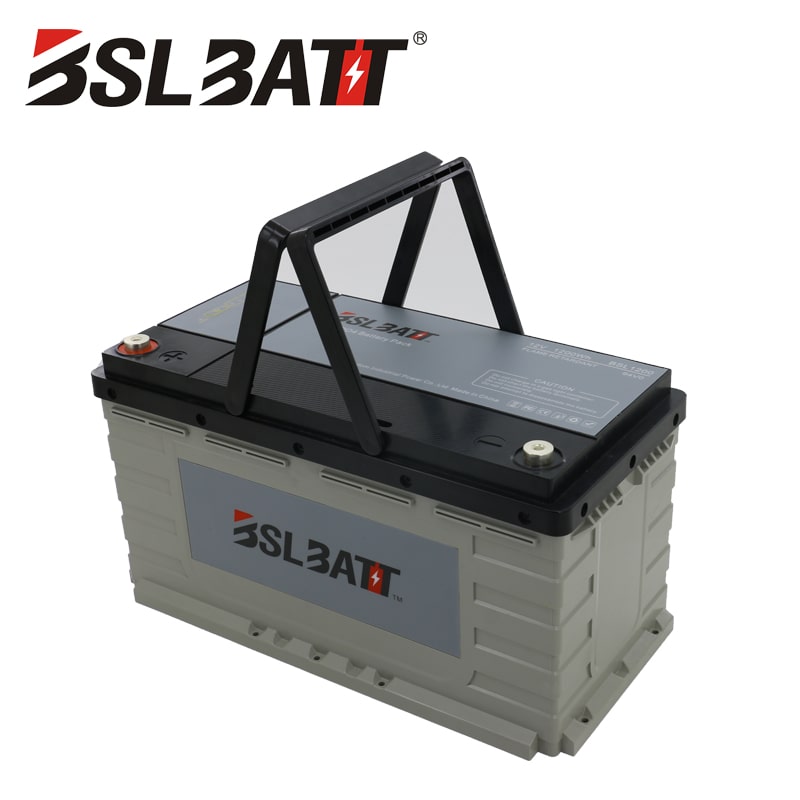

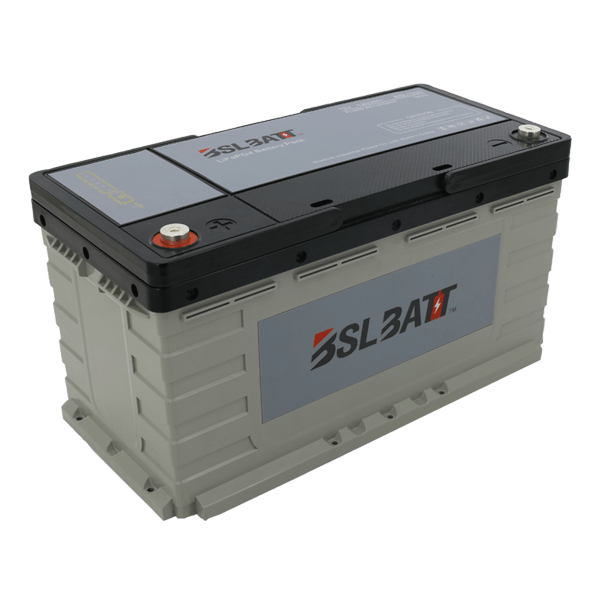

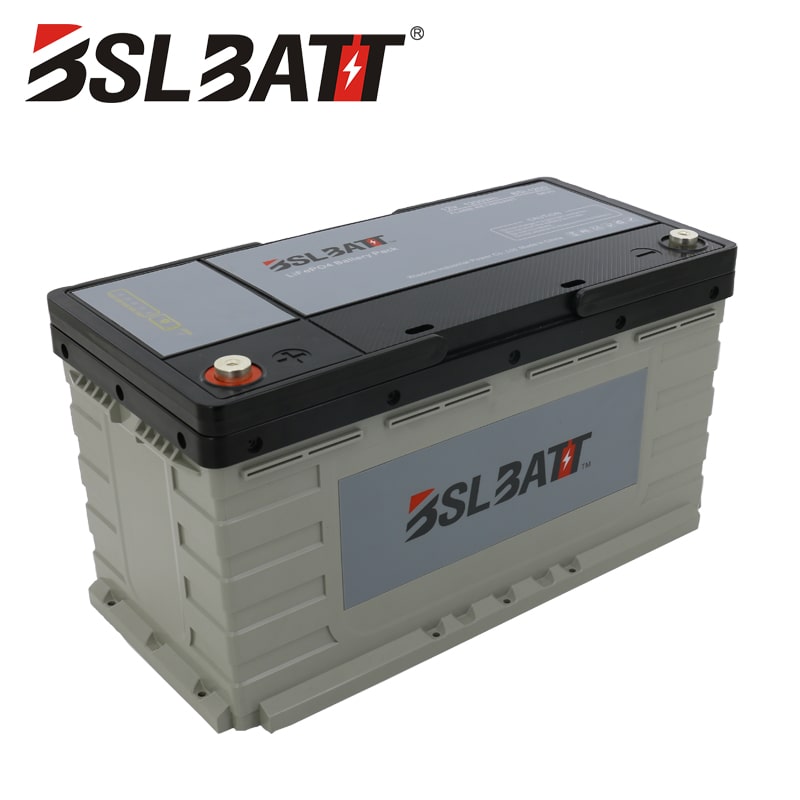

12V 90Ah LiFePo4 Deep Cycle Battery
-
Our start-stop battery can be discharged to a depth of 80% DOD and supports long periods of high current discharge. The voltage is stable and saves fuel consumption. Long cycle life and no need for replacement for the life of the vehicle.
|

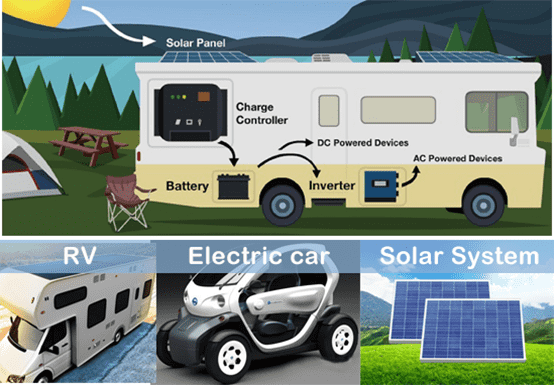

BSLBATT® batteries are based on Lithium iron battery technology (LiFePO4). Compared to lead-acid alternatives, this 12V90Ah battery is the perfect combination of size and capacity to fit many applications including, RV, marine, solar energy systems and more.it's a lightweight alternative to lead-acid and one of our most popular lithium batteries. LiFePO4 batteries can be discharged up to 100% without risk of damage. Make sure you charge your battery immediately after discharge. We recommend discharging be limited to 80-90% depth of discharge (DOD) to avoid the BMS disconnecting the battery.
|
- Lift Trucks
- Solar
- UPS
- Telecom
- Industrial
- Remote Power
- Military
- RV
- Utility batteries
- Marine
- Mining
|
|
|
|
|
|
|
|
|
■ Specifications
| Items | Parameter |
| Battery Type | LiFePO4 |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 90Ah |
| Energy | 1152 WH |
| Dimensions (L x W x H) | 262*167*212MM |
| Weight | 12.8KG |
| Case Material | ABS/Iron case |
| Certifications | CE/ISO/UN38.3/MSDS |
| Efficiency | 99% |
| Self Discharge | <1% per Month |
| Series & Parallel Application | max. 4 series or 4 parallel connected application |
| Peak Discharge Current | 180 A |
| Peak Discharge Current | 90 A |
| Operation Temperature Range | -20~60℃ |
| Voltage at end of Discharge | 8-11.2 V |
| Working Voltage | 10-13.8V |
| Discharge Temperature | -4 to 140 ºF (-20 to 60 ºC) |
| Charge Temperature | 32 to 113 ºF (0 to 45 ºC) |
| Storage Temperature | 23 to 95 ºF (-5 to 35 ºC) |
| Cycle Life | > 3500 cycles |
| Self-Discharge Rate | Residual capacity: ≤3%/month; ≤15%/years |
| Reversible capacity: ≤1.5%/month; ≤8%/years | |
| Storage Temperature & Humidity Range | Less than 1 month: -20℃~35℃, 45%RH~75%RH |
| Less than 3 months: -10℃~35℃, 45%RH~75%RH | |
| Recommended storage environment: 15℃~35℃，45%RH~75%RH |
■ Product List
| Models | Voltage（V） | Nominal Capacity（AH） | Max.charge current（A） | Weight（kg）+/-5% | Dimension（+/-3mm） | Cycle life DOD 100% | ||
| L（mm） | W（mm） | H（mm） | ||||||
| B-LFP12-40 | 12 | 40 | 20 | 6 | 195 | 130 | 168 | ＞2000 |
| B-LFP12-50 | 12 | 50 | 30 | 7 | 229 | 138 | 213 | ＞2000 |
| B-LFP12-80 | 12 | 80 | 30 | 12.8 | 262 | 167 | 212 | ＞2000 |
| B-LFP12-100 | 12 | 100 | 50 | 14 | 323 | 173 | 218 | ＞2000 |
| B-LFP12-120 | 12 | 120 | 60 | 16 | 323 | 173 | 218 | ＞2000 |
| B-LFP12-150 | 12 | 150 | 75 | 24 | 485 | 172 | 240 | ＞2000 |
| B-LFP12-170 | 12 | 170 | 85 | 26 | 485 | 172 | 240 | ＞2000 |
| B-LFP12-200 | 12 | 200 | 100 | 30 | 520 | 269 | 205 | ＞2000 |
| B-LFP12-240 | 12 | 240 | 120 | 34.2 | 520 | 269 | 208 | ＞2000 |
| B-LFP24-50 | 24 | 50 | 25 | 14.8 | 520 | 380 | 290 | ＞2000 |
| B-LFP24-100 | 24 | 100 | 50 | 28 | 520 | 450 | 350 | ＞2000 |
| B-LFP24-150 | 24 | 150 | 50 | 42 | 520 | 450 | 400 | ＞2000 |
| B-LFP24-200 | 24 | 200 | 50 | 56 | 520 | 380 | 290 | ＞2000 |
| B-LFP24-250 | 24 | 250 | 50 | 70 | 600 | 450 | 350 | ＞2000 |
| Because the model is numerous, only displays the part, may contact us to understand more! | ||||||||
■ Battery Management System:
The lithium batteries are supplied with Battery Management System that can monitor and optimize each single cell during charge and discharge, to protect the battery pack from damage agains over-charge, over-discharge, short circuit. The BMS helps to ensure safe and accurate running.
| Items | Content | Specification |
| Over Charge | Over-charge protection for each cell | 3.8±0.03V |
| Over-charge release for each cell | 3.60±0.05V | |
| Over-charge release method | Under the release voltage | |
| Over Discharge | Over-discharge protection for each cell | 2.3±0.05V |
| Over-discharge release for each cell | 2.8±0.05V | |
| Over-discharge release method | Charge to recovery | |
| Over Current | Over discharge current protection | 300A~500A |
| Protection delay time | 50ms～200ms | |
| Over current release method | Delay about 8S after recovery | |
| Short Circuit | Do not short-circuit the electrodes | Designed for 600A/500us |
| Battery Temperature | Charge over temperature | Protection @ 65±5℃ |
| Release @ 50±5℃ | ||
| Discharge over temperature | Protection @ 65±5℃ | |
| Release @ 50±5℃ | ||
| MOSFET over temperature | Protection @ 103±10℃ | |
| Release @ 75±10℃ |
