Telecom

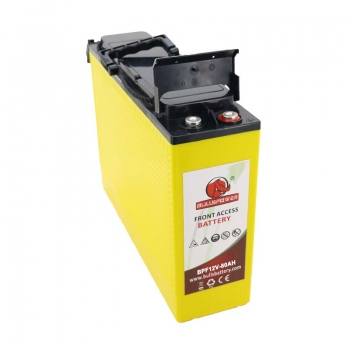

Front-Terminal Batteries 12V-80AH
-
BPF series batteries are specially designed with front conversion terminal, easier for installation and save floor space, long life float service design and high energy density, used in back-up power for communication and UPS system.
Features:
12 years design life at floating condition
Wide operating temperature range from -15°C to 55°C
Thick pasted plates with high quality lead-tin-calcium alloy grids for long service life
Much more energy in comparison to the battery with the same rated capacity
Front access terminal with standard width for 19" and 23" ETSI racks
30% decreased float current lead to excellent high temperature resistance
Designed floating service life: 12 years at 20℃/68°F
Warranty: 1-2 years
Applications:
- Communication equipment
- Big Uninterruptible power supplies
- Telecommunication systems
- Electronic cash registers
- Solar or wind power station
- Telecommunications
- Other Standby Systems
- Uninterruptible Power Supply (UPS)
- Medical Equipments
- Emergency Power Systems
| Battery Model | Rated voltage |
10Hr Capacity | Length | External Dimension | Weight | Terminal | ||
| Width | Height | Total Height | Approx（±3%） | |||||
| （V） | （AH） | MM | MM | MM | MM | Kgs | ||
| BPF12-55 | 12 | 55 | 277 | 106 | 223 | 223 | 16.0 | T2 |
| BPF12-80 | 12 | 80 | 562 | 114 | 188 | 188 | 25.0 | T3 |
| BPF12-100 | 12 | 100 | 507 | 110 | 223 | 223 | 30.0 | T5 |
| BPF12-110 | 12 | 110 | 394 | 110 | 286 | 286 | 31.0 | T5 |
| BPF12-125 | 12 | 125 | 552 | 110 | 239 | 239 | 37.5 | T5 |
| BPF12-150 | 12 | 150 | 551 | 110 | 288 | 288 | 44.0 | T5 |
| BPF12-160 | 12 | 160 | 551 | 110 | 288 | 288 | 45.0 | T5 |
| BPF12-175 | 12 | 175 | 546 | 125 | 316 | 316 | 53.8 | T5 |
| BPF12-180 | 12 | 180 | 560 | 125 | 316 | 316 | 54.2 | T5 |
| BPF12-190 | 12 | 190 | 560 | 125 | 316 | 316 | 55.5 | T5 |
